Bohr-und Ausdrehkopf

Inspiriert durch einen Artikel in einer Fachzeitschrift, habe ich so ein Bohr- und Ausdrehkopf hergestellt.

Sicherlich kann man dieses Teil auch im Werkzeughandel erwerben, aber ich hatte den Ehrgeiz, das Teil selbst herzustellen.

Die Abmaße ergaben sich aus dem vorhandenen Material, welches ich im Schrottkübel fand.

Die Verwendung von Ausdrehstählen mit einem Spann- Ø von 8mm ist möglich.

Der Morse-Kegelschaft ist ein Zubehörteil aus dem Werkzeughandel. Er ist mit einem Gewinde in den Bohrkopf eingeklebt.

Die Verstellspindel hat 8 mm Ø und eine Steigung von 0,5 mm.

Die Zustellgenauigkeit je Teilstrich beträgt 0,025 mm.

Inspired by an article in a trade magazine, I made a drilling and boring head like this.

You can certainly buy this part in a tool shop, but I had the ambition to make it myself.

The dimensions resulted from the existing material I found in the scrap bucket.

It is possible to use boring steels with a clamping Ø of 8mm.

The Morse taper shank is an accessory from the tool trade. It is glued into the drill head with a thread.

The adjusting spindle has 8 mm Ø and a pitch of 0.5 mm.

The feed accuracy per graduation mark is 0.025 mm.

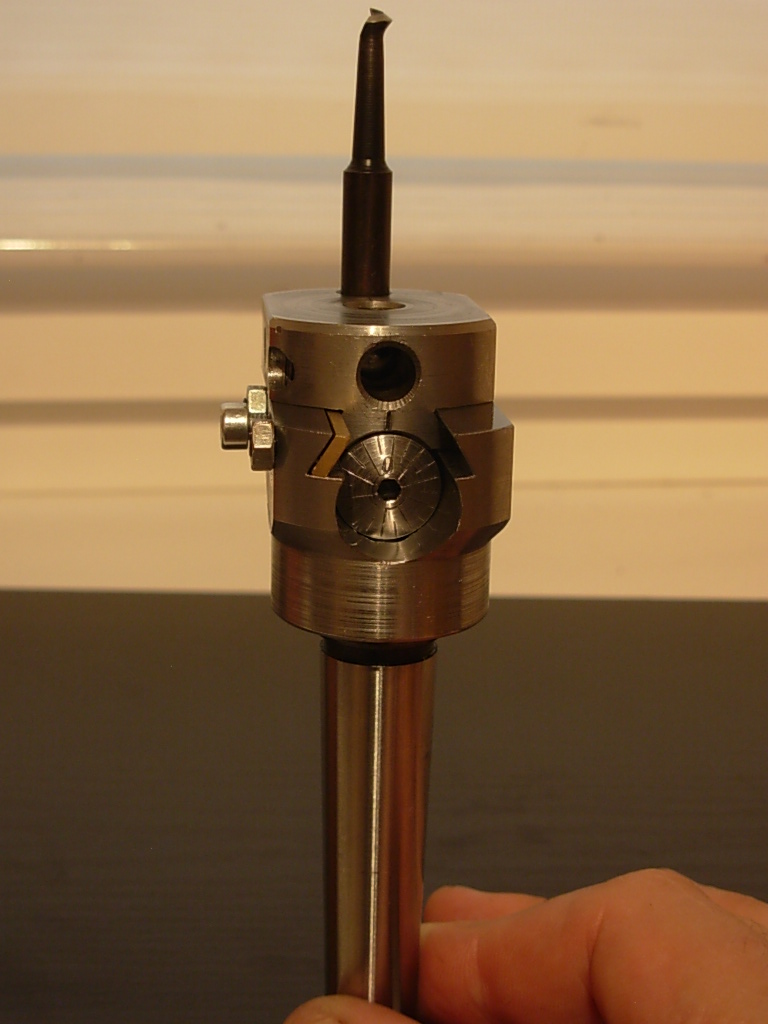

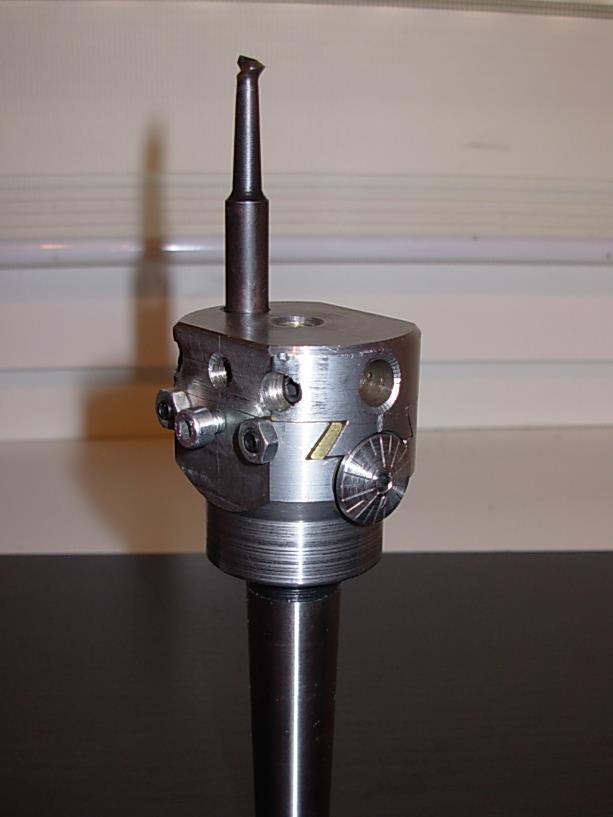

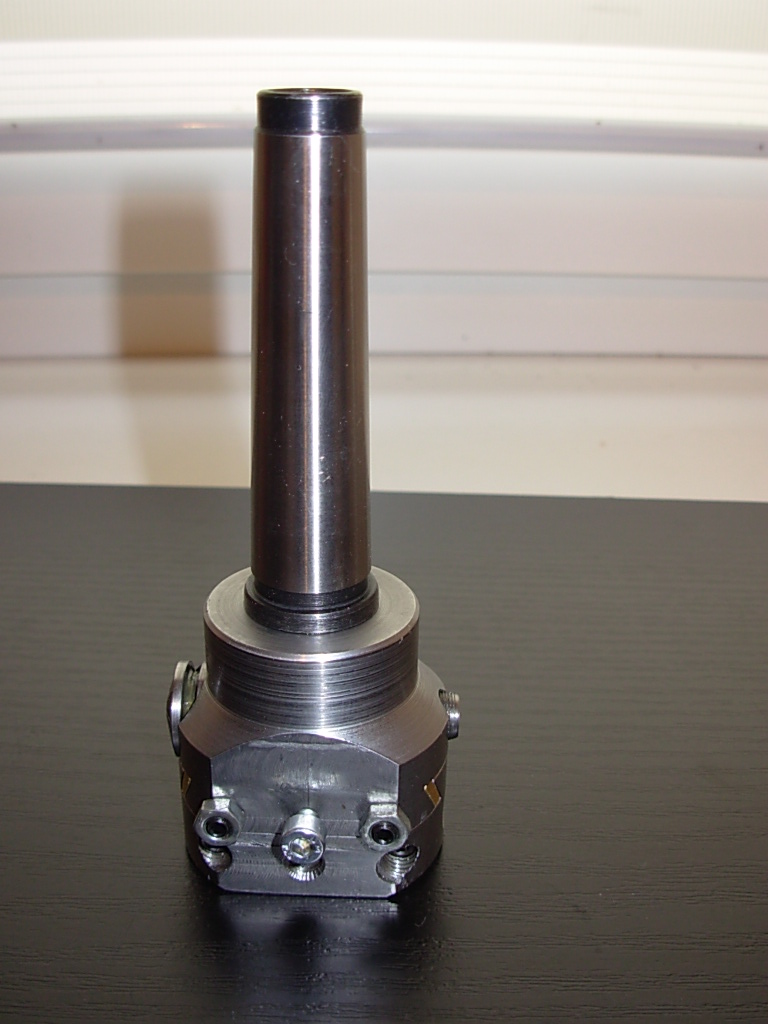

Bohr- und Ausdrehkopf für die Fräsmaschine.

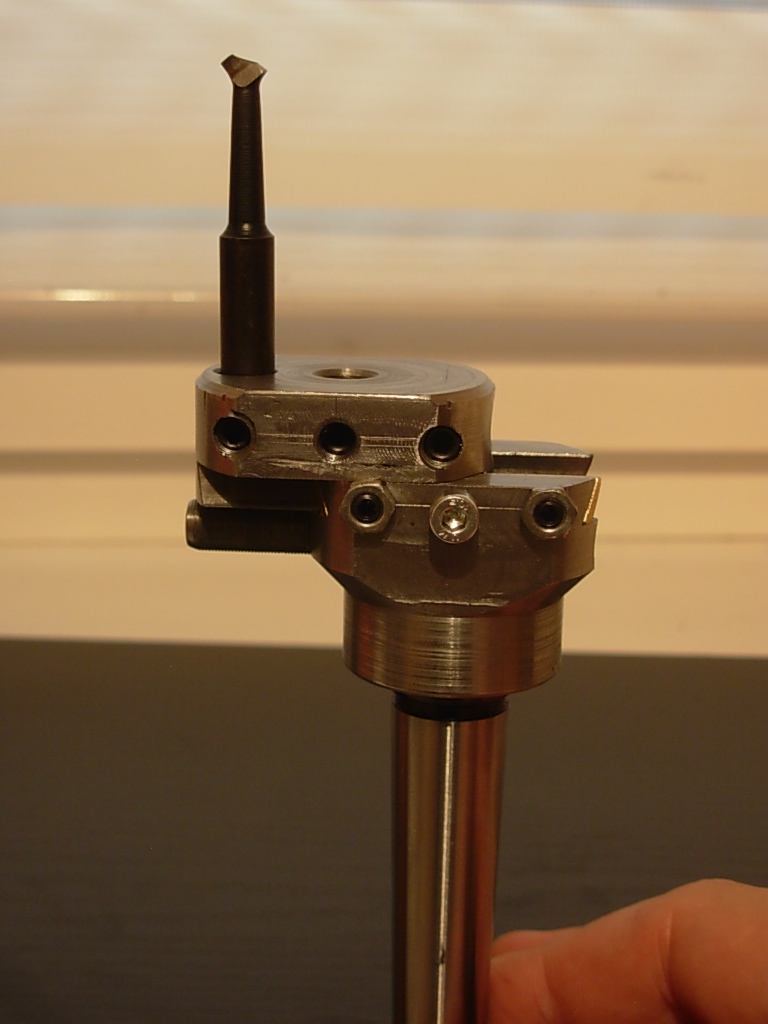

Der maximale Bearbeitungs-Durchmesser beträgt ca. 70 mm.

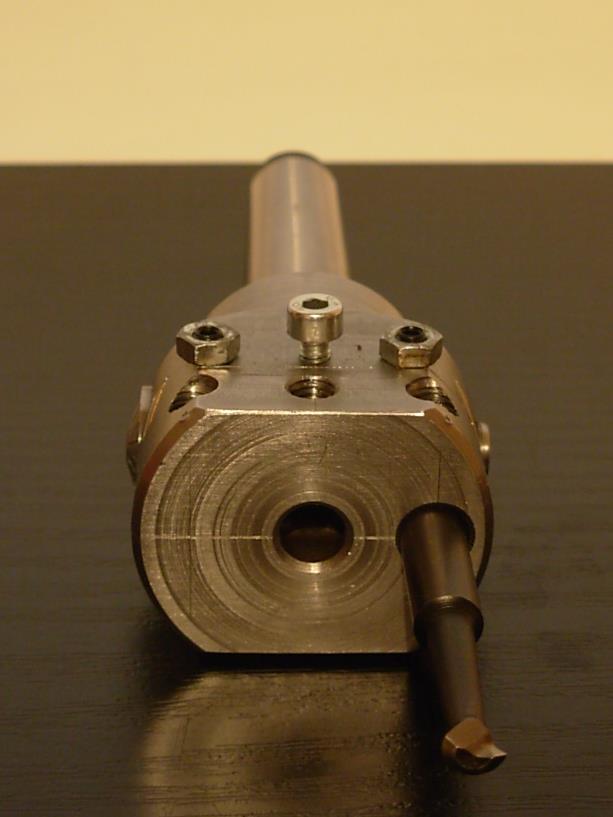

Bohr- und Ausdrehkopf mit eingespanntem Drehstahl. Die Bohrungen sind Ø 8 mm.

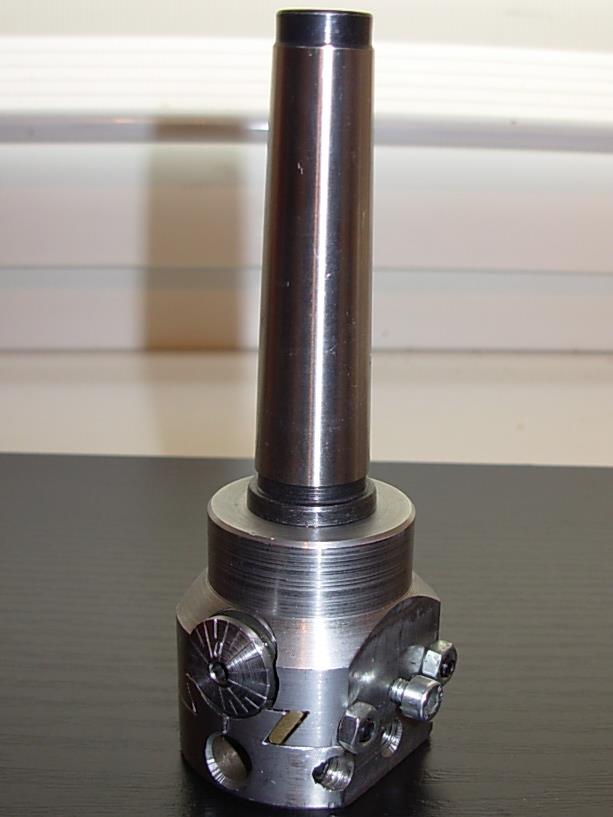

Morse Kegel 2.

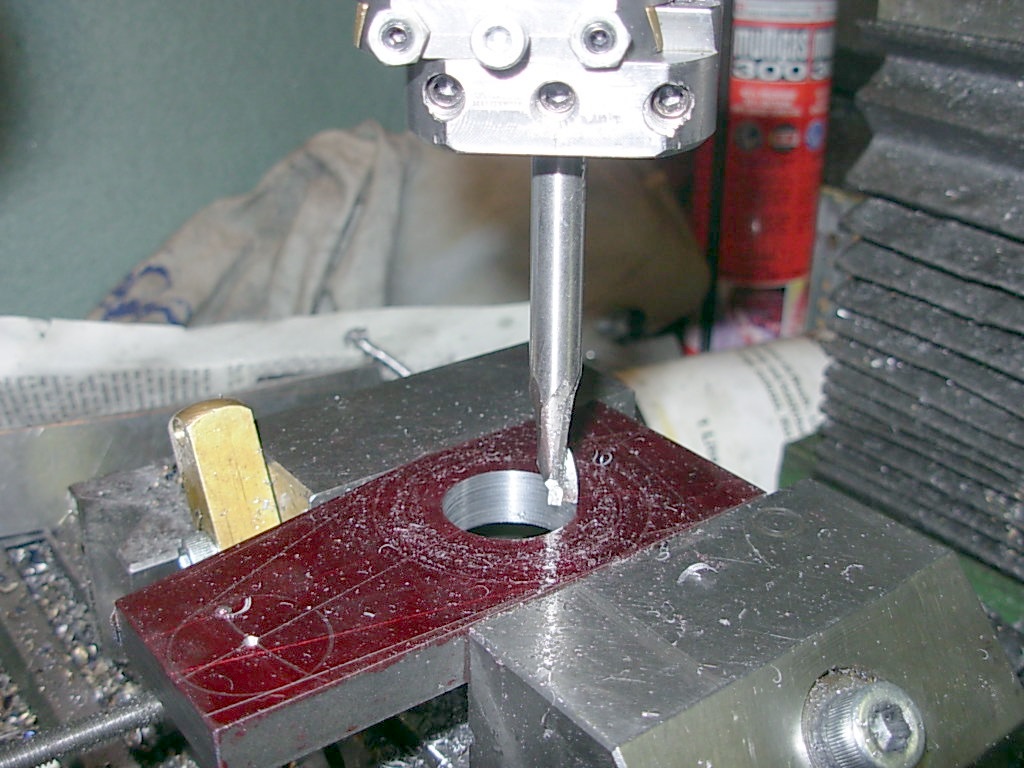

Ausdrehkopf bei der Arbeit.

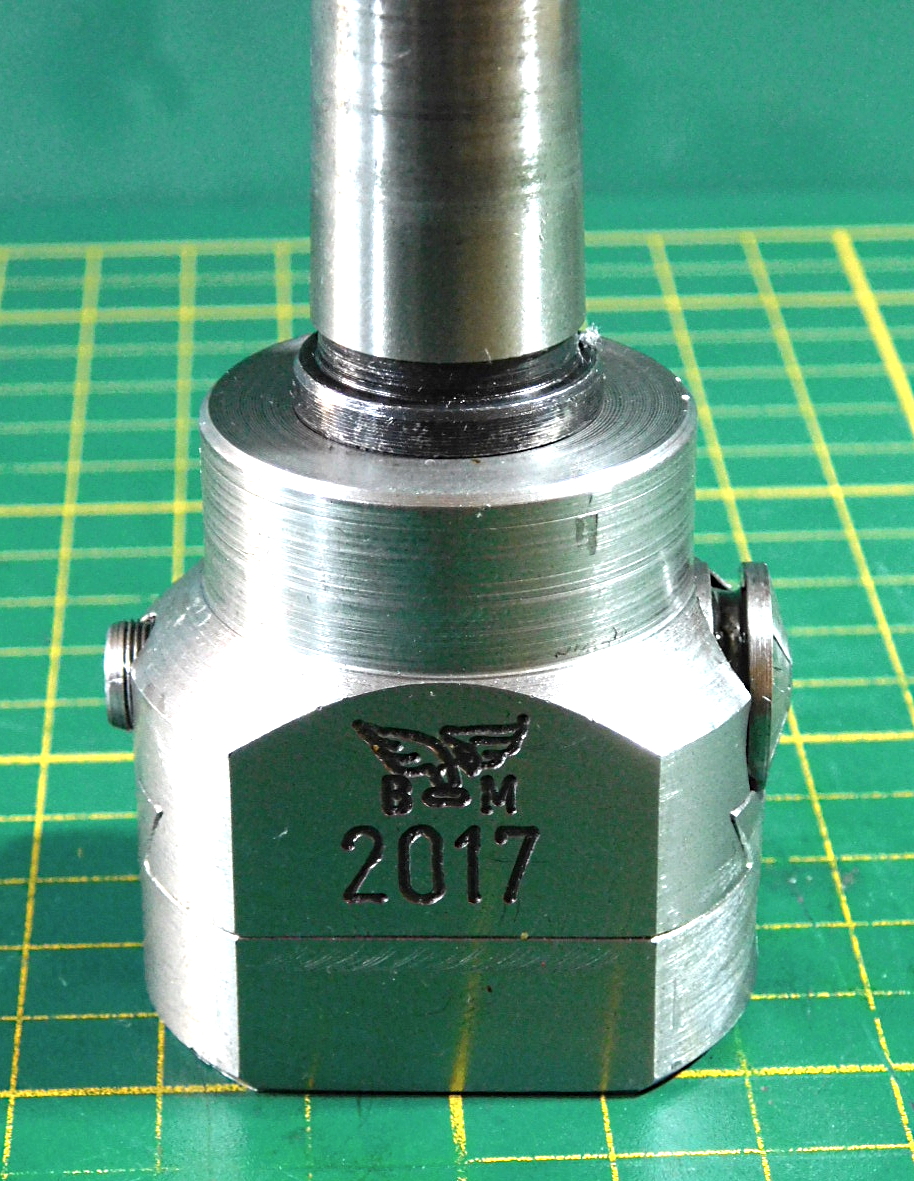

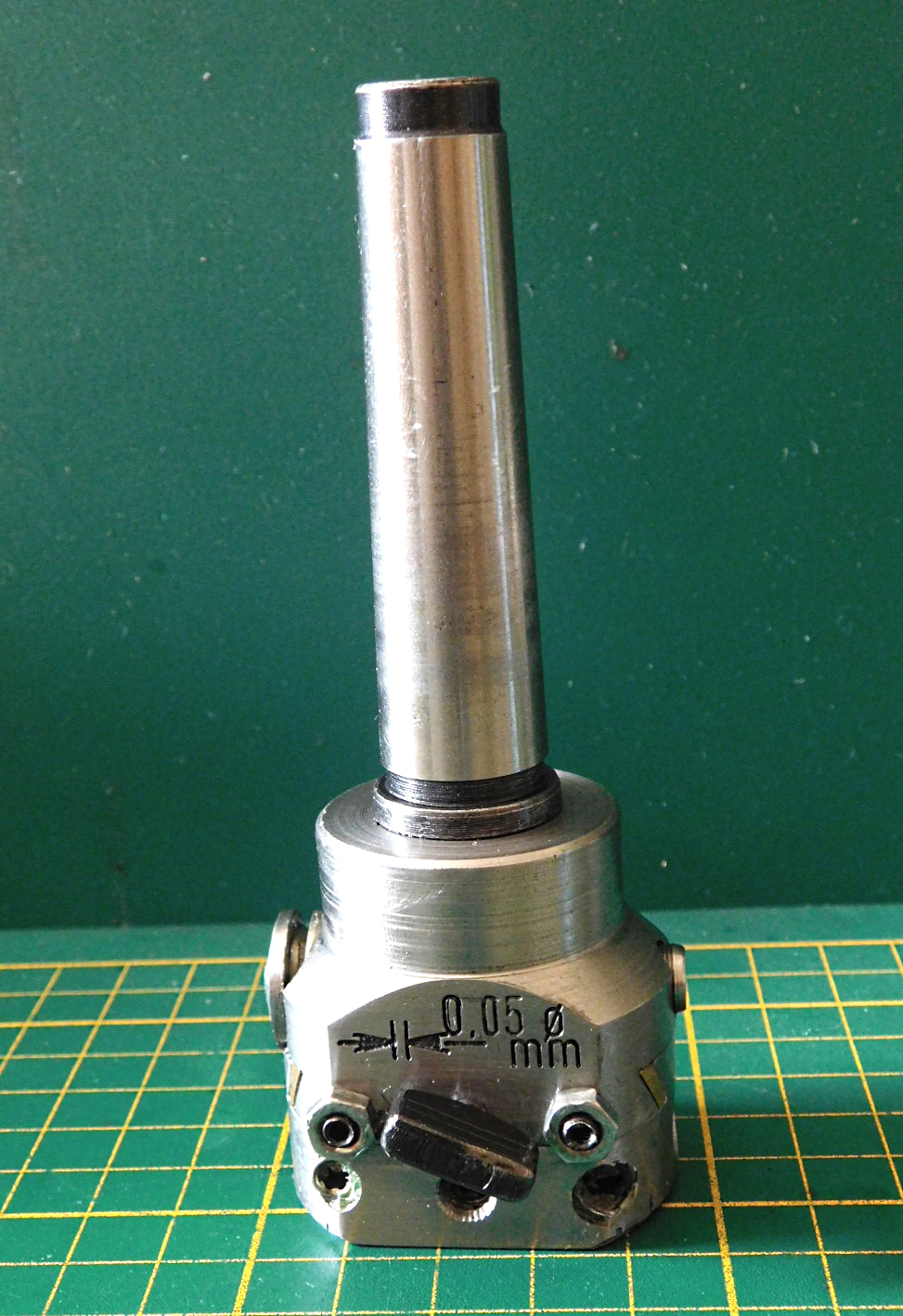

Das Logo und Herstellungsjahr habe ich später eingraviert.

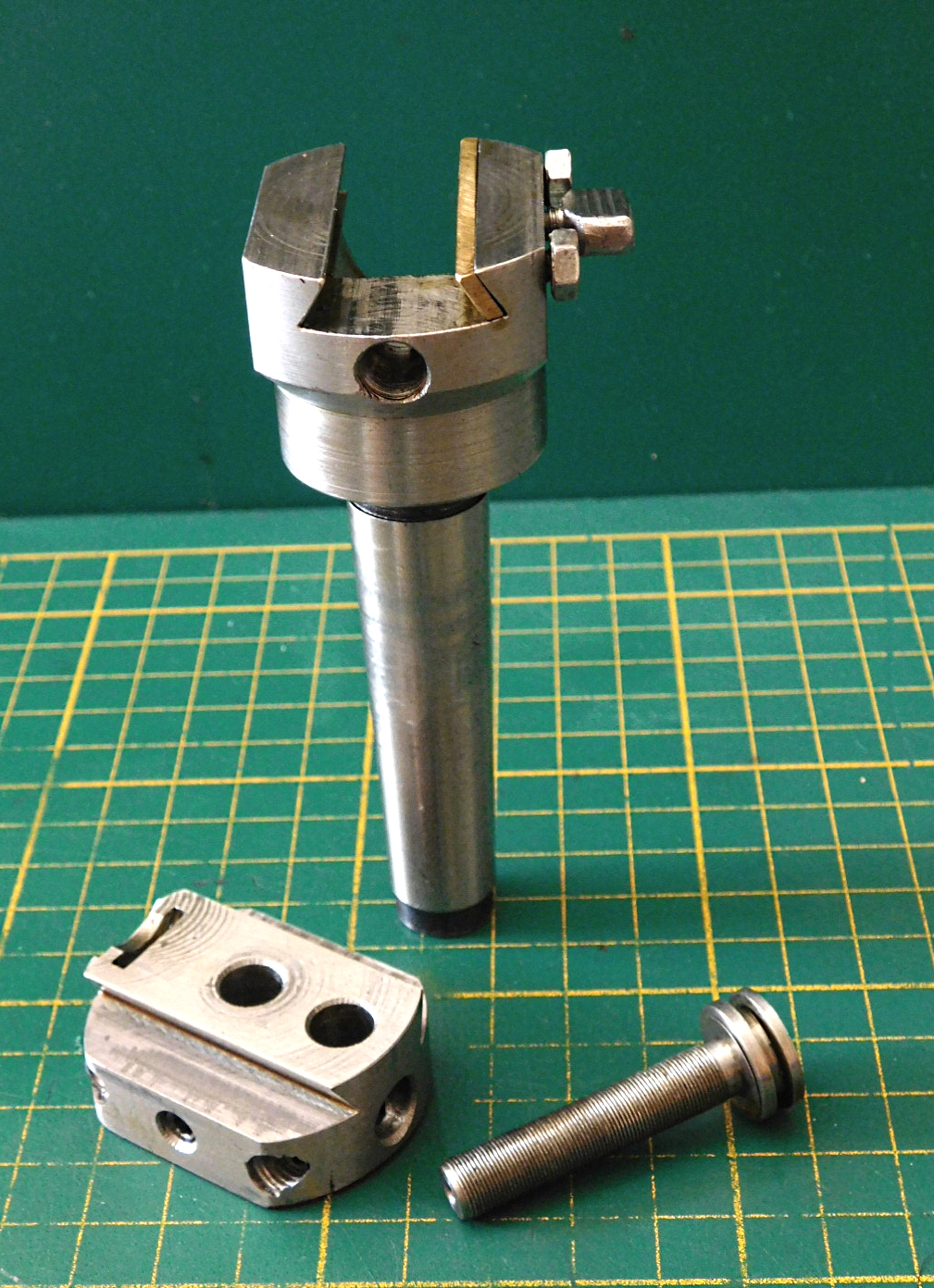

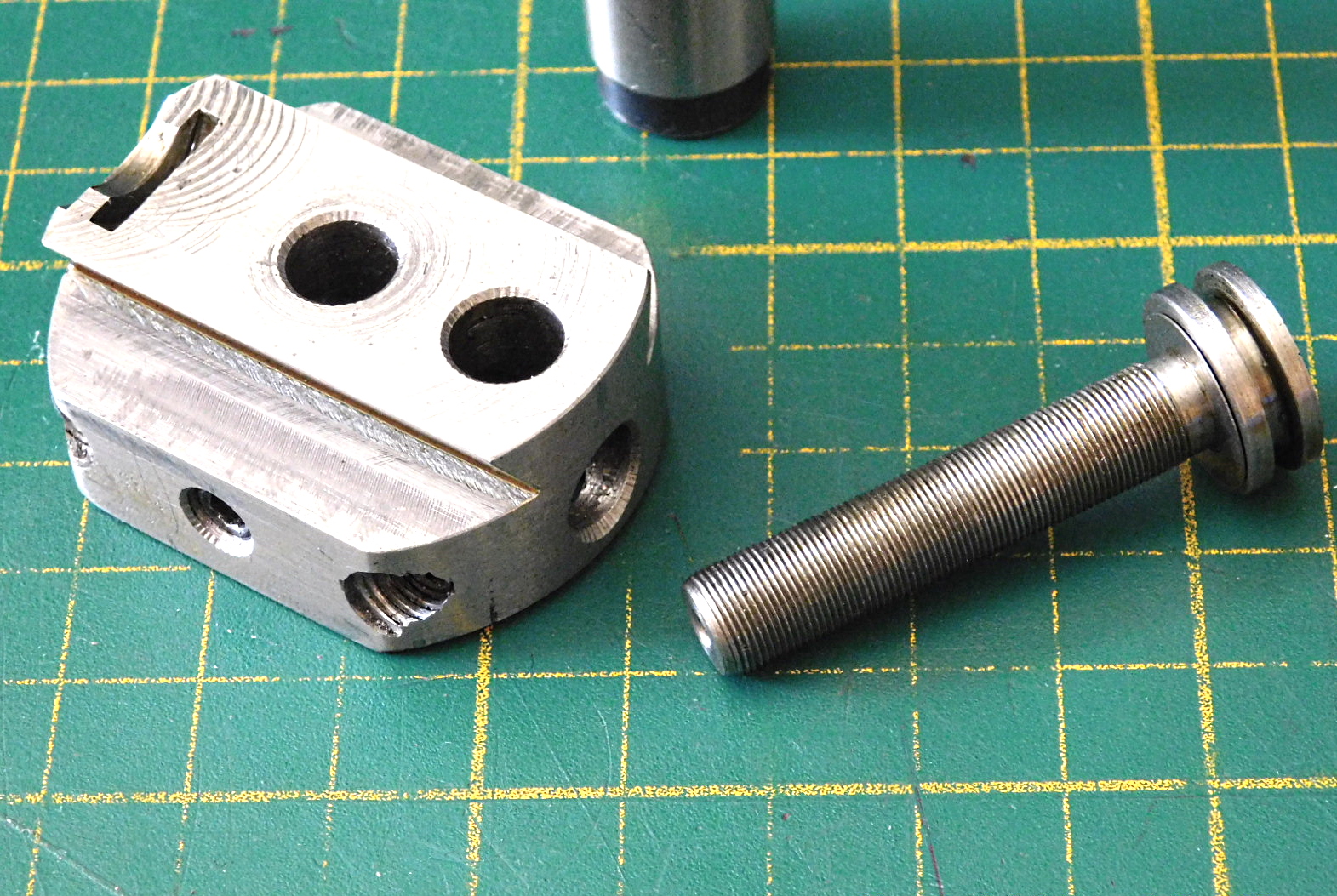

Einzelteile
